Round Tube Rolling Forming Precision Tube Mill By Galvanized Steel Strip
Precision tube mill General Introduction
HG89 High-Frequency Welded Pipe Production Line is designed to produce square pipe 30-89mm and according size square pipe , thickness 1-3mm. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
According to the designing guideline of improving the operating character & environment and the safety & producing character , reducing the cost of the roller to guarantee high efficiency,HG89 production line adopts the double-radius hole style of design .
High Frequency Welded Pipe MillMain Parameters and Specifications
| (1)Material Specifications: |
| Standard | Internatioanl standard tube mill machine |
| Material | galvanized steel |
| Mechanical properties | σb≤520Mpa,σs≤365MPa |
| Strip Width | 60-280mm |
| Strip Thickness: | 1-3mm |
| Inner Diameter of Coils | Φ508mm |
| Outer Diameter of Coils | Φ1300～φ2000mm |
| Coil Weight | ≤5T |
| (2)Pipe Specification |
| Pipe Diameter | 25-89mm
|
| Length | 3-6m |
| Pipe-cutting Precision | 0-6mm |
| Forming Speed | max 80m/min for 2mm thickness |
| (3)The buyer should self-supply |
| Work shop | 60x12m, H＞5m(crane to ground) |
| Power | Approx.3500KW 380V/60Hz/3phases |
| Circulation Cooling Water(whole system) | Flow:30+30 CBM
Pool Volume:40m3 |
| Compressed Air
(whole system) | Flow:5m3/min
Pressure: 5-7kg/ cm2 |
| Cable | All cable outside of my machine, you buy after machine fix location. |
Precision tube mill Working Process
strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package
Precision tube mill
Our Factory for Precision tube mill
Our Office
Our Team
Past Project for Precision tube mill
Precision tube mill and Management Certificate
Product Tags:
|
|

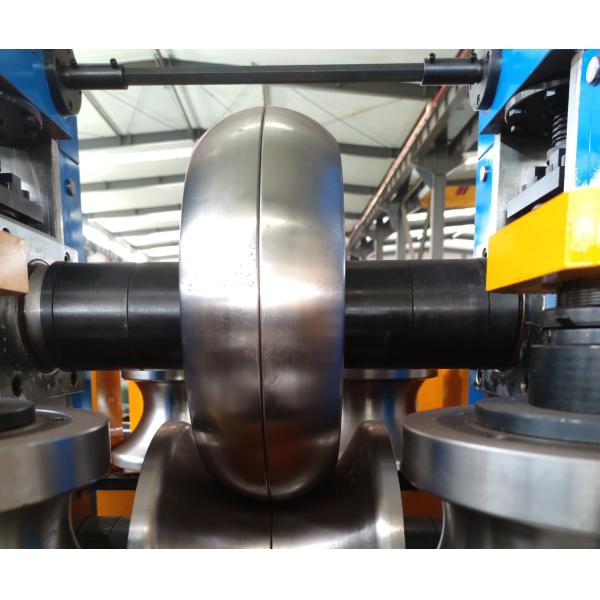

Precision Round Tube Mill for Galvanized Steel 25-89mm Images
|
